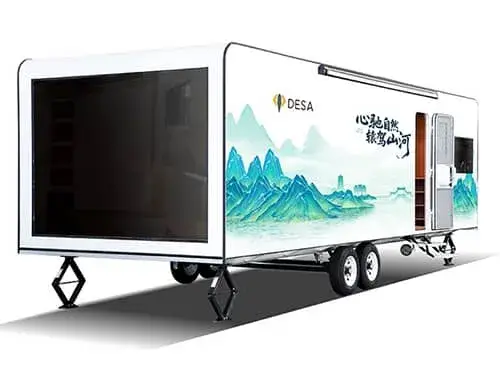

This travel trailer is a towable, non-motorized mobile home designed to provide comfort and convenience at campgrounds. Inside, it is equipped with a washbasin, shower area, drying rack, compact refrigerator, and a queen-size double bed, offering all the essentials for relaxed travel living. With dimensions of 9.5 m × 3 m × 3.26 m, it balances space efficiency with complete functionality, making it a practical choice for long or short stays.
|
|
|||
| DESA model | DS9036XLJ3 | Wheelbase (mm) | 5345+785 |
| Vehicle type | Center-axle travel trailer | Front/rear overhang (mm) | -/3320 |
| Powertrain | Non-powered (towable) | Front/rear track width (mm) | 2475/2475 |
| Max. speed (km/h) | 10 | Kingpin diameter (mm) | 50 |
| Length (mm) | 9500 | Kingpin load (kg) | 240 |
| Width (mm) | 3000 | Number of leaf springs | 9/9 |
| Height (mm) | 3260 | Curb weight (kg) | 3400 |
| Interior width × height (mm) | 2788×2200 | Gross weight (kg) | 3800 |
| Chassis | Frame | Rectangular tube longitudinal frame, welded structure, electrophoretic anti-corrosion treatment |
| A-frame | Fixed front A-frame with jockey wheel | |
| Axle | Special welded axle for travel trailers | |
| Suspension | Leaf spring suspension | |
| Towing | Cast ball-type towing hitch | |
| Tyres & wheels | 225/70R15C, steel wheels | |
| Brake | No service brake / parking brake | |
| Support system | 4 manual stabilizer legs | |
| Standard Configurations | Exterior Features | Rear fixed glass window, bathroom fixed glass window, and sliding window |
| RV-specific passenger door with insect screen (card-swipe type) | ||
| Front and rear square-shaped molded panel | ||
| Two-step manual entry step | ||
| Foldable handrail at passenger door | ||
| Reinforced body structure | ||
| Interior Features & Furniture | Australian walnut wood interior style (light color) | |
| 1 two-person bed | ||
| Work desk, rattan chair | ||

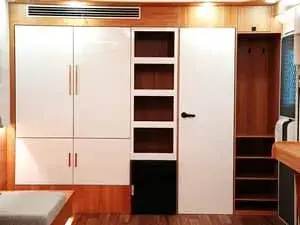

| Combined wardrobe outside bathroom | ||
| Decorative circular ceiling (luxury finish), decorative accent wall | ||
| Electrical | 43" LCD TV | |

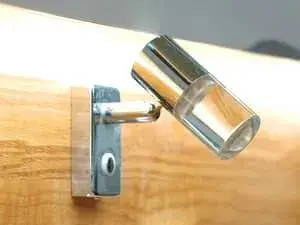

| Interior lighting, ambient lighting, and table lamp | ||

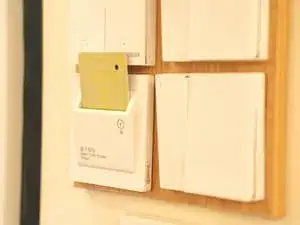

| Master power switch with card key, circuit protection, mains power sockets and external mains power input | ||
| AC&Ventilation | 2P ducted air conditioner | |
| Bathroom ventilation fan | ||
| Living Facilities | 40L mini fridge | |
| Electric water heater (100L storage) | ||
| Wash basin with faucet | ||
| Water & Sanitary System | Camp water inlet (under chassis) PPR fresh water pipes (20 mm), PVC grey water pipes (50 mm), black water pipe (110 mm) | |
| Separate wet and dry bathroom (integrated vanity + shower set) with towel rack | ||
| Ceramic manual flush toilet | ||
| Safety | 2kg dry powder extinguisher, smoke alarm | |
| Floor | Light-colored flooring in bedroom Dark-colored flooring in bathroom | |
| Exterior Lighting | 1 exterior lamp | |
| External Audio & Video Input | Cable TV, network, telephone | |
| Bathtub | No bathtub, with reserved installation space |
Integration of solar energy, large fresh/grey water tanks, and efficient batteries extends travel range and convenience in remote areas.
Yes, smart layouts and electrical outlets support both leisure travel and mobile workspace set-up.
