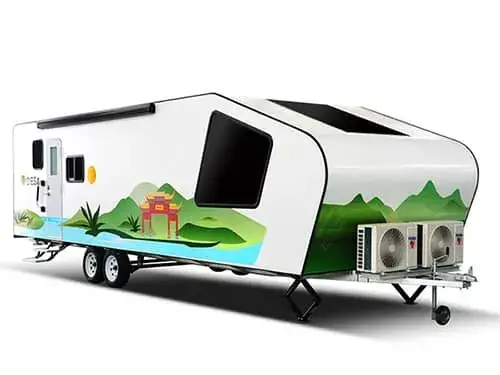

This travel trailer delivers a cost-effective and flexible solution for family getaways, creating a comfortable, convenient, and private home on wheels at scenic campgrounds. Designed to offer both a deep connection with nature and the freedom of mobile living, it provides the perfect balance between practicality and comfort for memorable journeys.
|
|
|||
| DESA model | DS9036XLJ1 | Interior width × height (mm) | 2800×2200 |
| Vehicle type | Center-axle travel trailer | Wheelbase (mm) | 5850+785 |
| Powertrain | Non-powered (towable) | Front/rear overhang (mm) | -/4320 |
| Rated passenger capacity | / | Front/rear track width (mm) | -/2475 |
| Max. speed (km/h) | 10 | Kingpin diameter (mm) | 50 |
| Length (mm) | 11000 | Kingpin load (kg) | 200 |
| Width (mm) | 3000 | Curb weight (kg) | 4100 |
| Height (mm) | 3270 | Gross weight (kg) | 4400 |
| Chassis | Frame | Rectangular tube longitudinal frame, welded structure, electrophoretic anti-corrosion treatment |
| A-frame | Fixed front A-frame with jockey wheel | |
| Axle | Special welded axle for travel trailers | |
| Suspension | Leaf spring suspension | |
| Towing | Cast ball-type towing hitch | |
| Tyres & wheels | 225/70R15C, steel wheels | |
| Brake | No service brake / parking brake | |
| Support system | 4 manual stabilizer legs | |
| Standard Configurations | Exterior Features | Side hollow windows and sliding windows |
| RV-specific passenger door with insect screen (card-swipe type) | ||
| Front & rear integrated fiberglass body (double-head design) | ||
| Two-step manual entry step | ||
| Foldable handrail at passenger door | ||
| Front & rear curved skylights with blackout blinds | ||
| Reinforced body structure | ||
| Interior Features & Furniture | Australian walnut wood interior (light color) | |
| Partial curtains | ||
| Layout: front two-person bed + mid sofa + rear 2 one-person beds | ||
| Electrical | 43" smart LCD TV | |
| Interior lighting + partial LED strips | ||
| Exterior right-side LED strip | ||
| 1 exterior lamp | ||
| Master power switch with card key, circuit protection, mains power sockets and external mains power input | ||
| Ventilation | Roof vent fan in bathroom | |
| Living Facilities | 40L mini fridge | |
| Ceramic sink with fixed faucet | ||
| Water & Sanitary System | Camp water inlet (under chassis) PPR fresh water pipes (20 mm), PVC grey water pipes (50 mm), black water pipe (110 mm) | |
| Separate wet and dry bathroom with shower and towel rack | ||
| Living room wash basin with fixed faucet and towel bar | ||
| Ceramic manual flush toilet | ||
| Hot Water System | 220V electric water heater (100L storage) | |
| Air Conditioning | 1P wall-mounted AC (master bedroom) + 2P ducted AC (living room) | |
| Safety | 2kg dry powder extinguisher, smoke alarm | |
| Floor | Dark wood-effect floor | |
| External Audio & Video Input | Cable TV, network, telephone | |
| Discharge outlet | Combined grey & black water discharge outlet | |
| Extra high-power sockets | No extra sockets (AC220V) |

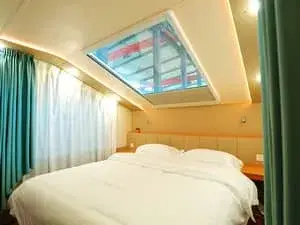

Sleeping area

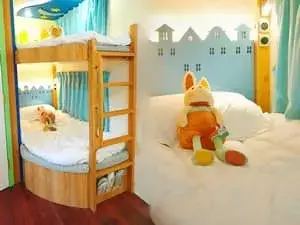

Sleeping area

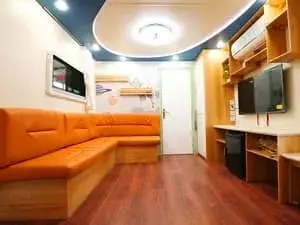

Living space

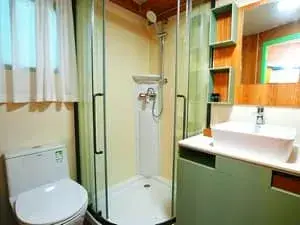

BathroomFlexible interiors, solar readiness, independent kitchens and plenty of storage allow fit-out for city or off-grid use.
Insulated cabins, air conditioning, business-class seating and child bed designs support restful travel.
