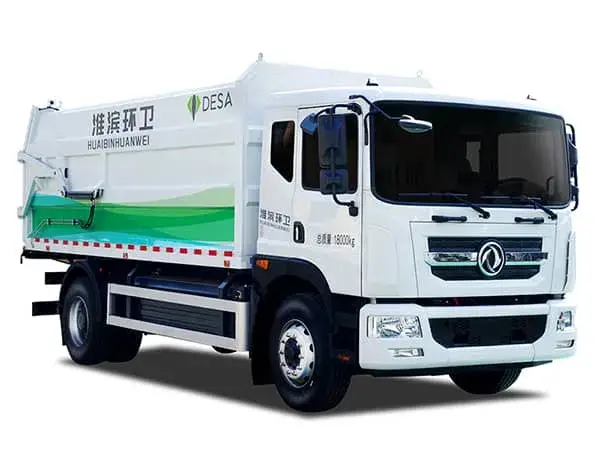

All-Electric Garbage Truck
Rear load refuse trucks for both residential and commercial waste collectionThe new energy garbage truck is built with a garbage box assembly, subframe, rear door, and integrated electric-hydraulic system, designed for efficient and reliable waste transfer. It is used to transport compacted household waste from transfer stations to disposal sites, ensuring safe and hygienic handling. As a rear-load refuse truck, it is suitable for both residential and commercial waste collection, offering flexibility across different operating environments.
Equipped with both loading and unloading functions, all operations can be controlled directly from the cab, making it simple and convenient to use. By adopting an electric vehicle solution, it promotes sustainability in waste collection without compromising on performance. The result is an energy-saving, environmentally friendly, and safe solution that delivers dependable performance for modern waste management.
- Carrying Capacity 19m³/7.4tons
- Vehicle Dimensions (L×W×H) 7750×2550×3250(mm)
| Vehicle dimensions (L×W×H) (mm) | 7750×2550×3250 |
| Gross weight (kg) | 18000 |
| Curb weight (kg) | 10380 |
| Rated loading capacity (kg) | 7425 |
| Chassis brand | Dongfeng |
| Max. gradeability (%) | 30 |
| Battery capacity (kWh) | 255.48 (CATL) |
| Driving range (km) | 350 |
| Motor model | TZ315XS230 (PanGood) |
| Rated power/peak power (kW) | 125/230 |
| Garbage container capacity (m³) | 19.5 |
| Discharging time (s) | ≤60 |
| Sewage tank capacity (L) | 110 |
| Discharge height (mm) | 1460 |
| Transport capacity (length of each garbage bale | 3 garbage bales |

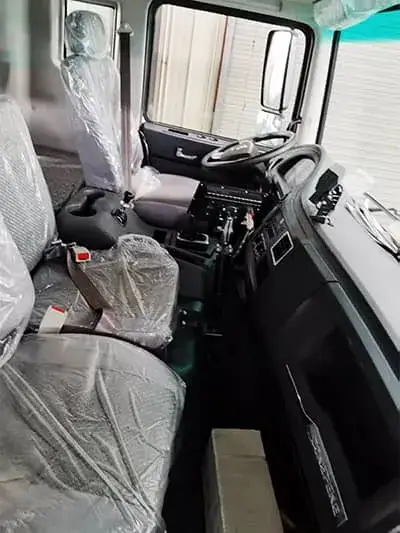

Driver cab
- Equipped with high-precision machining capabilities, we are able to achieve cutting accuracy of ±0.25 mm and surface roughness of 25μm–50μm, ensuring precise and consistent parts.
- Advanced bending and forging equipment meets the sheet metal forming requirements of multiple vehicle types, enabling one-time forming with exact dimensions.
- More than ten specialized welding procedures are in place to handle components of various sizes. Automated welding equipment further ensures strength, consistency, and durability.
- Dedicated sandblasting, painting, and baking facilities provide vehicles with corrosion resistance and long-lasting finishes.
-
