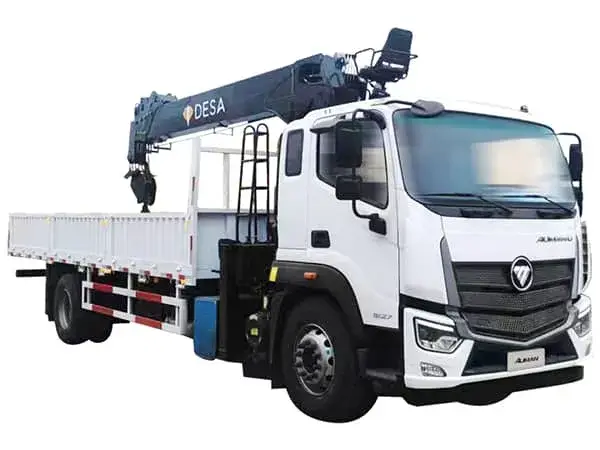

Truck-Mounted Crane (Foton Truck)
The Foton truck-mounted crane is powered by a National VI Yuchai 245 hp engine paired with a Fast 8-speed transmission, delivering strong performance with low fuel consumption. Equipped with an 8-ton crane and a 9 m auxiliary boom, it meets the lifting demands of medium and small equipment. The chassis features a 10-ton rear axle and reinforced 10/10+8 leaf springs, providing reliable stability with a 5.8-ton payload capacity. A 5,600 mm cargo bed accommodates construction materials, machinery, and other heavy loads, while the 300 L fuel tank ensures extended operation. The flat-roof cab improves clearance and maneuverability, making it suitable for narrow worksites. 10.00R20 tires add strength and durability, enabling this truck to handle both lifting and transport tasks across urban and rural construction sites.
- Maximum Working Radius 14.6 m
- Maximum Lifting Capacity 8 tons
- Maximum Lifting Height 15.7 m
| Crane type | Auman 4×2 chassis | Tyres | 10.00R20 |
| Chassis model | BJ181Y6AKS-01 | Gross mass (kg) | 18000 |
| Cab | MA5 flat top driver's cabin | Rated loading capacity (kg) | 5870 |
| Engine | Yuchai YCS06245-60A | Truck bed size (mm) | 5600×2450×550 |
| Jib length (m) | 9 | Wheelbase (mm) | 5150 |
| Leaf spring | 10/10+8 | Transmission | Model: FAST 8JS9STE Type: 8-speed manual transmission with synchronizer Material: iron housing, flange connection |
| Front axle | 5.5t | Fuel tank capacity | 300L |
| Rear axle | 10t (435) rear axle (single stage axle) | Front/rear overhang (mm) | 1270/2580 |

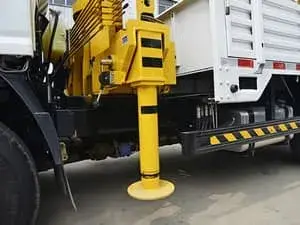

Outrigger

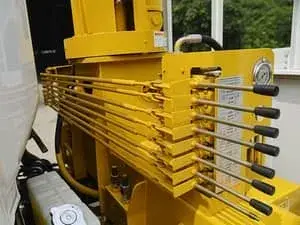

Control levers

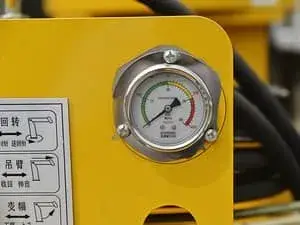

Indicator gauge

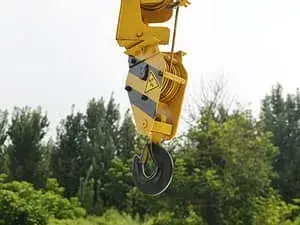

Hook
- Equipped with high-precision machining capabilities, we are able to achieve cutting accuracy of ±0.25 mm and surface roughness of 25μm–50μm, ensuring precise and consistent parts.
- Advanced bending and forging equipment meets the sheet metal forming requirements of multiple vehicle types, enabling one-time forming with exact dimensions.
- More than ten specialized welding procedures are in place to handle components of various sizes. Automated welding equipment further ensures strength, consistency, and durability.
- Dedicated sandblasting, painting, and baking facilities provide vehicles with corrosion resistance and long-lasting finishes.
-
