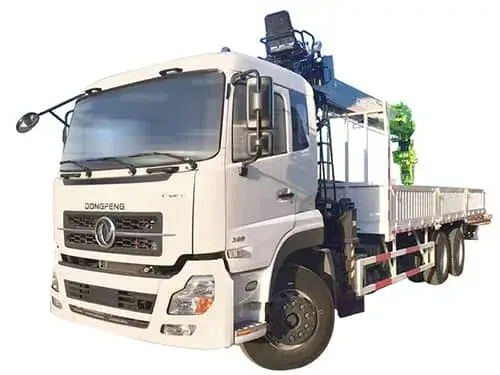

Truck-Mounted Crane (Dongfeng Truck)
The Dongfeng Tianlong truck-mounted crane combines heavy-duty transport with efficient lifting capability, powered by a Cummins 380 hp engine and a Fast 12-speed transmission for strong performance and smooth shifting. These cranes serve diverse industries, from concrete production and foundation work to roofing, building supply, railway, and military applications where safety and reliability are extremely demanding.
At its core is the QYS-15IVE five-section boom crane, delivering a maximum lifting capacity of 14 tons within a 2.5 m working radius and extending to a full operating reach of 19 m. With 360° continuous slewing and a 0-75° boom angle, it provides flexible maneuverability even in confined spaces. The chassis features a 13-ton tandem rear axle, 315 large tires, and a 400 L fuel tank for stable carrying capacity and extended range. A 7.8 m cargo bed offers ample space for steel, machinery, and other heavy goods, making this vehicle a versatile solution that meets both lifting and transport needs in a single unit.
- Boom length: 10.5-41m
-
Lifting capacity:

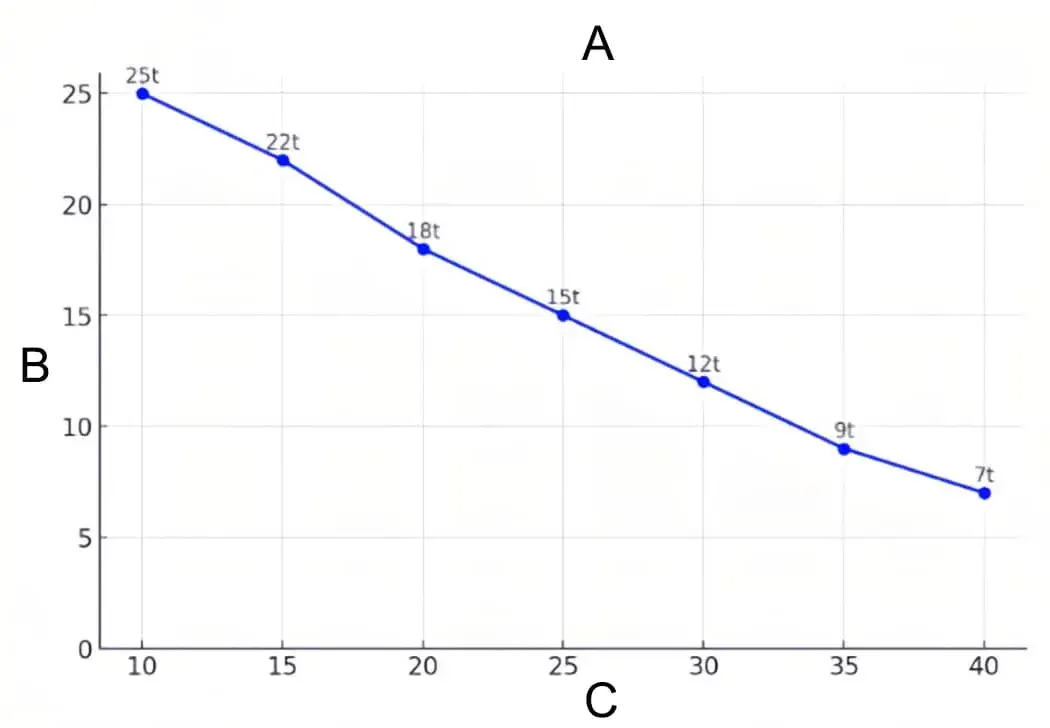

A: Crane Lifting Capacity vs Boom Length
B: Max Lifting Capacity (ton)
C: Boom Length (m)
| Rated lifting capacity (kg) | Main hook | 25000 |
| Auxiliary hook | 3000 | |
| Max. lifting torque (kN.m) | Basic boom | 1068 |
| Fully extended boom | 679 |
-
Lifting height:

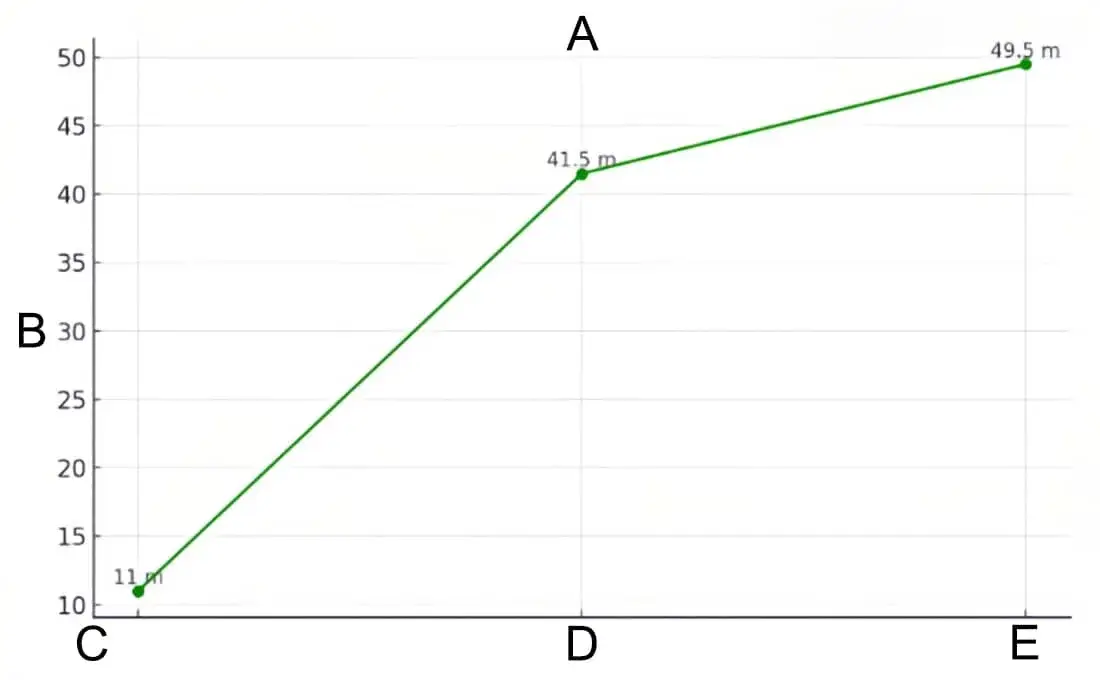

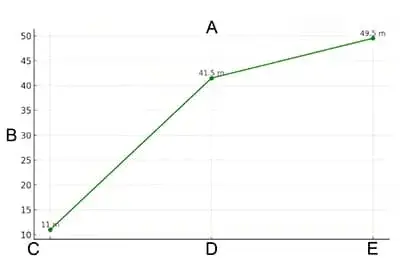

A: Maximum Lifting Height
B: Height (m)
C: Basic boom
D: Completely extended boom
Boom Configuration
E: Basic boom + jib
| Rated lifting capacity (kg) | Basic boom | 11 |
| Fully extended boom | 41.5 | |
| Basic boom + jib | 49.5 |
| Crane type | Dongfeng Tianlong 6×4 chassis | Slewing angle | 360° (continuous forward and reverse rotation) |
| Chassis model | Dongfeng DFL1250AW2 | Nominal working pressure | 25MPa |
| Gross mass (kg) | 25000 | Wheelbase (mm) | 5600+1350 |
| Crane weight (kg) | 6700 | Cab | D310 flat top driver's cabin |
| Truck bed size (mm) | 7800×2450×600 | Engine | Cummins ISL 380 Euro V |
| Crane model | QYS-15IVE (5-section boom) | Transmission | FAST 12JSD180T transmission (with synchronizer) |
| Max. lifting moment (kN.m) | 300 | Front axle | 7t |
| Max. lifting capacity (ton) | 14 (range ≤ 2.5m) | Rear axle | 13t (tandem rear axle, single stage) |
| Max. working radius (m) | 19 | Leaf spring | Steel leaf spring |
| Max. working height (m) | 19m (distance from installation surface) | Tyre | 315/80R22.5 |
| Boom angle range | 0-75° | Fuel tank capacity | 400L |
Outrigger

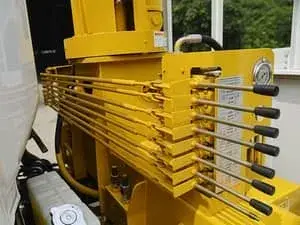

Control levers

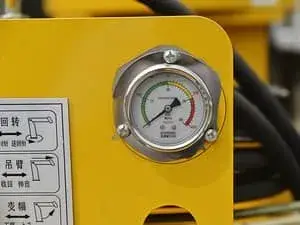

Indicator gauge
Hook
- Equipped with high-precision machining capabilities, we are able to achieve cutting accuracy of ±0.25 mm and surface roughness of 25μm–50μm, ensuring precise and consistent parts.
- Advanced bending and forging equipment meets the sheet metal forming requirements of multiple vehicle types, enabling one-time forming with exact dimensions.
- More than ten specialized welding procedures are in place to handle components of various sizes. Automated welding equipment further ensures strength, consistency, and durability.
- Dedicated sandblasting, painting, and baking facilities provide vehicles with corrosion resistance and long-lasting finishes.
-
