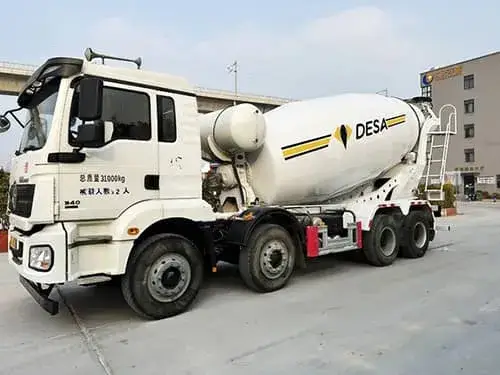

Concrete Mixer Truck (Shacman M3000 Chassis)
The Shacman M3000 concrete mixer truck delivers a reliable and efficient solution for concrete transport, engineered for rugged job sites and mid- to short-distance infrastructure projects. With its proven powertrain and optimized lifecycle cost, it offers dependable performance and long-term value.
- Capacity 12m³/16.8T
- Water Tank Capacity 600-1000L
- Equipped with the golden power chain (Weichai engine, FAST transmission, and Hande drive axle), delivering strong power while reducing fuel consumption by 15%.
- Reinforced chassis and high-efficiency hydraulic system ensure concrete homogeneity, rapid discharge, and reduced segregation risk.
- Complies with Euro V and China VI emission standards, making it suitable for both domestic and international markets.
- Wide-body cab design improves safety and reduces driver fatigue.
- Low failure rate and easy maintenance reduce downtime and optimize lifecycle cost.
| Vehicle model |
|
||
| Capacity (m³) | 12 | Engine emission standard | Euro V |
| Vehicle dimensions (mm) | 10100×2550×3990 | Engine power (kW/PS) | 249/340 |
| Curb weight (kg) | 14000 | Drive axle | HDS (Hande) 16T double-stage reduction drive axle, ratio 5.73 |
| Chassis model | Shacman Delong M3000 SX5310GJBMB6 | Transmission | Shaanxi FAST 10JSD120T 10-speed transmission |
| Cab | White cab | Tyre | 11.00R20 |
| Axle configuration | 8×4 | Reducer | PMP/FAST |
| Wheelbase (mm) | 1800+3000+1400 | Hydraulic pump/hydraulic motor | PMP/Hytek/Sauer |
| Engine model | WP7.340E53 (lightweight) | ||

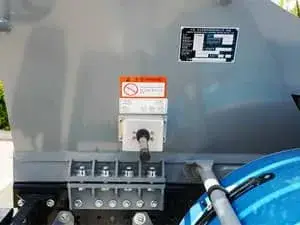

Hydraulic control lever

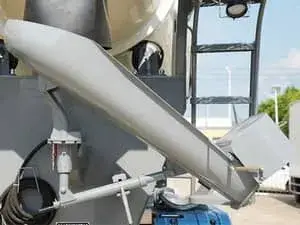

Discharge system

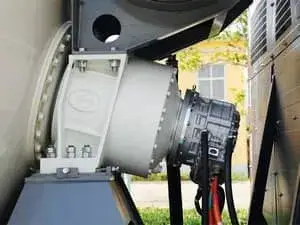

Mounted motor

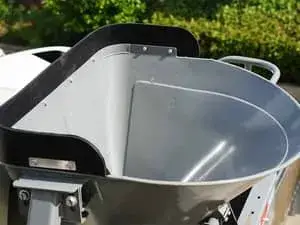

Feeding inlet

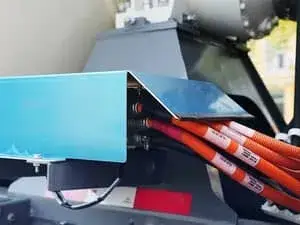

High-pressure connections
- Equipped with high-precision machining capabilities, we are able to achieve cutting accuracy of ±0.25 mm and surface roughness of 25μm–50μm, ensuring precise and consistent parts.
- Advanced bending and forging equipment meets the sheet metal forming requirements of multiple vehicle types, enabling one-time forming with exact dimensions.
- More than ten specialized welding procedures are in place to handle components of various sizes. Automated welding equipment further ensures strength, consistency, and durability.
- Dedicated sandblasting, painting, and baking facilities provide vehicles with corrosion resistance and long-lasting finishes.
-
