All-Electric Concrete Mixer Truck | Foton Chassis Mixer

Products
Concrete Mixer Truck (Foton/Sinotruk Chassis)

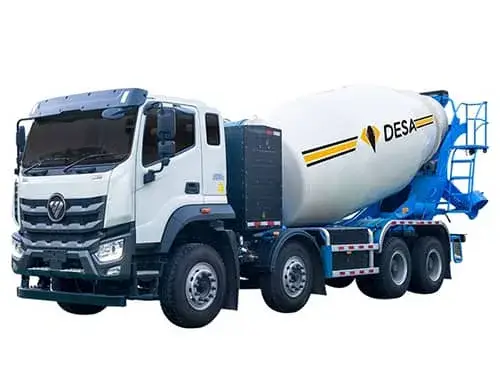

All-Electric Concrete Mixer Truck (Foton Chassis)

All-Electric Concrete Mixer Truck (Foton Chassis)

The Foton all-electric concrete mixer truck delivers a zero-emission, regulation-compliant solution for sustainable construction projects. It combines reliable power with energy efficiency, ensuring stable performance across demanding conditions while lowering operating costs. Designed as modern mixing and conveying equipment for concrete plants and mixing stations, it eliminates road pollution and supports cleaner, more efficient operations.

Request a Quote

Capacity 8-12m³/18T
Water Tank Capacity 600-1000L

Features

Equipped with a 350 kWh battery, the truck offers a driving range of up to 300 km, eliminating the need for exhaust certification and meeting stringent environmental standards.

Powered by a Tebco motor paired with a 6.73 high-ratio rear axle, the truck is capable of tackling 30% gradients, ensuring dependable operation in urban and mountainous environments.

The chassis is built from T980 high-strength steel to support heavy loads, while aluminum components reduce unladen weight by 12%, providing a durable lightweight design while improving efficiency and payload capacity.

The battery reaches 80% charge in just 1.5 hours, aligning with driver rest cycles. With an all-condition attendance rate above 90%, the truck is designed to keep projects moving on schedule with fast charging for maximum uptime.

Specifications

Vehicle	Truck Type	Auman Planetary	Auman Planetary	Auman Planetary
	Vehicle model	BJ5311GJBEVGRF-13	BJ5311GJBEVGRF-02	BJ5311GJBEVGRF-01
	Gross weight (kg)	31000	31000	31000
	Curb weight (kg)	12700	13240	15900
	Vehicle dimensions (mm)	10150×2545×3950	9940×2530×3980	10640×2530×3980
Chassis	Power type	All-electric	All-electric	All-electric
	Truck body	MA5 (Auman Planetary)	MA5 (Auman Planetary)	MA5 (Auman Planetary)
	Axle configuration	8×4	8×4	8×4
	Wheelbase (mm)	2000+2850+1350	2000+2850+1350	2000+3000+1400
	Motor model	TZ368XSSF-SZF601	TZ368XSSF-SZF601	TZ400XSTPG46
	Number of motors	Single motor	Single motor	Single motor
	Motor brand	FAST	FAST	Top Gear
	Charging	Rechargeable	Rechargeable	Rechargeable
	Battery capacity (kWh)	282	282	350
	Battery manufacturer	EVE/CATL	EVE/CATL	EVE/CATL
	Transmission	FS4E200-2	FS4E200-2	TS-0425C
	Transmission material	Aluminum	Aluminum	Iron
	Transmission manufacturer	FAST	FAST	Top Gear
	Front axle	5t (lightweight front axle)	5T	6.5t
	Rear axle	400L single-stage reduction dual-drive axle	440/10T	270/13T
	Rear axle ratio	5.143	5.571	6.73
	Brake	Drum brake/drum brake	Drum brake/drum brake	Drum brake/drum brake
	Suspension (leaf spring)	3/3/3	3/3/5	10/10/12
	Frame (H×W×T) (mm)	286×80×(7+4)	286×80×(8+4)	305×90×(8+5)
Subframe	Stringer (longitudinal beam)	Size: 140×90×8 Material: T700	Size: 140×90×8 Material: T700	Size: 140×90×8 Material: T700
	Front bracket	BS700 T=8	BS700 T=8	BS700 T=8
	Rear bracket	BS700 T=6	BS700 T=6	BS700 T=6
	Reducer	Top Gear	Top Gear	Top Gear
	Drive	PanGood	PanGood	PanGood
	Water tank	Material: aluminum Capacity: 360L	Material: aluminum Capacity: 360L	Material: aluminum Capacity: 360L
	Second axel fender	Plastic	Plastic	Plastic
	Rear axle fender	Aluminum	Aluminum	Aluminum
Mixing drum	Drum material	T980 T=3	T980 T=3	T980 T=3.5
	Blade material	T980 T=3	T980 T=3	T980 T=3
	Effective capacity (m³)	8	10	12

Details Showcase

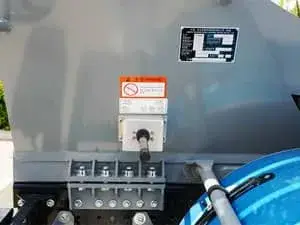

Hydraulic control lever

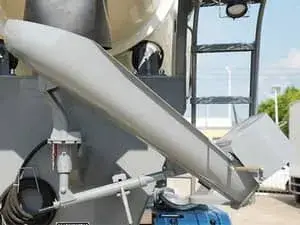

Discharge system

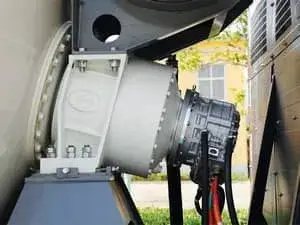

Mounted motor

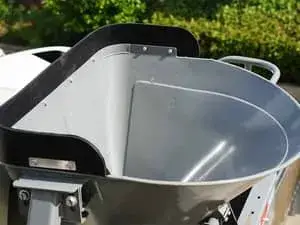

Feeding inlet

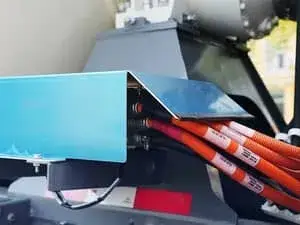

High-pressure connections

Looking for reliable commercial vehicles for your next project?

Equipped with high-precision machining capabilities, we are able to achieve cutting accuracy of ±0.25 mm and surface roughness of 25μm–50μm, ensuring precise and consistent parts.
Advanced bending and forging equipment meets the sheet metal forming requirements of multiple vehicle types, enabling one-time forming with exact dimensions.
More than ten specialized welding procedures are in place to handle components of various sizes. Automated welding equipment further ensures strength, consistency, and durability.
Dedicated sandblasting, painting, and baking facilities provide vehicles with corrosion resistance and long-lasting finishes.
